| SPECIFICATIONS | |
| List price | $5495 |
| Engine | dohc Six |
| Bore x stroke | 64.5 x 53.4mm |
| Displacement | 1047cc |
| Compression ratio | 9.3:1 |
| Carburetion | (6) 28mm Keihin CV |
| Air filter | paper element |
| Ignition | inductive electronic |
| Claimed power | na |
| Claimed torque | na |
| Lubrication | wet sump |
| Oil capacity | 5.8 qt. |
| Fuel capacity | 5.3 gal. |
| Starter | electric |
| Electrical power | 350w alternator |
| Battery | 12v 12ah |
| Headlight | 55 / 60 quartz |
| Primary drive | Hy Vo chain and gears |
| Clutch | multiplate, wet |
| Final drive | 530 chain |
| Gear ratios, overall:1 | |
| 5th | 5.49 |
| 4th | 6.35 |
| 3rd | 7.36 |
| 2nd | 9.26 |
| 1st | 12.91 |
| Suspension: | |
| Front | air assisted coil |
| travel | 6.3 in. |
| Rear | swing arm / air assisted monoshock |
| travel | 4.1 in. |
| Tires: | |
| Front | 3.50V- 19 Dunlop F11 |
| Rear | 130/90V- 18 Dunlop K127 |
| Brakes: | |
| Front | (2) 11.5-in. disc |
| Rear | single 11.5-in. disc |
| Brake swept area | 240.9 sq. in. |
| Brake loading (160-lb.rider) | 3.4 lb./sq. in. |
| Wheelbase | 60.4 in. |
| Rake/Trail | 29.5°/4.7 in. |
| Handlebar width | 29.5 in. |
| Seat height | 32.5 in. |
| Seat width | 9.5 in. |
| Footpeg height | 12.5 in. |
| Ground clearance | 6 in. |
| Test weight (w/half-tank fuel) | 662 1b. |
| Weight bias, front / rear, percent | 47/53 |
| GVWR | 1050 lb. |
| Load capacity | 388 lb. |
|
|
| PERFORMANCE | |
| Standing 1/4-mile | 12.13 sec. @ 109.89 mph |
| Top speed in 1/2 -mile | 124 mph |
| Fuel consumption | 41 mpg |
| Range (to reserve tank) | 188 mi. |

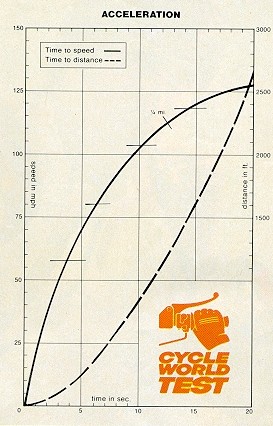

| Acceleration: | |
| 0-30 mph | 1.9 sec. |
| 0-40 mph | 2.7 sec. |
| 0-50 mph | 3.6 sec. |
| 0-60 mph | 4.6 sec. |
| 0-70 mph | 5.5 sec. |
| 0-80 mph | 6.6 sec. |
| 0-90 mph | 7.8 sec. |
| 0-100 mph | 9.6 sec. |
| Top gear acceleration: | |
| 40-60 mph | 4.3 sec. |
| 60-80 mph | 4.9 sec. |
| Maximum speed in gears: | |
| 1st | 57 mph |
| 2nd | 78 mph |
| 3rd | 100 mph |
| 4th | 116 mph |
| 5th | 135 mph |
|
