SPECIFICATIONS |   |
List price | $5495 |
Engine | dohc Six |
Bore x stroke | 64.5 x 53.4mm |
Displacement | 1047cc |
Compression ratio | 9.3:1 |
Carburetion | (6) 28mm Keihin CV |
Air filter | paper element |
Ignition | inductive electronic |
Claimed power | na |
Claimed torque | na |
Lubrication | wet sump |
Oil capacity | 5.8 qt. |
Fuel capacity | 5.3 gal. |
Starter | electric |
Electrical power | 350w alternator |
Battery | 12v 12ah |
Headlight | 55 / 60 quartz |
Primary drive | Hy Vo chain and gears |
Clutch | multiplate, wet |
Final drive | 530 chain |
Gear ratios, overall:1 |   |
  5th | 5.49 |
  4th | 6.35 |
  3rd | 7.36 |
  2nd | 9.26 |
  1st | 12.91 |
Suspension: |   |
  Front | air assisted coil |
    travel | 6.3 in. |
  Rear | swing arm / air assisted monoshock |
    travel | 4.1 in. |
Tires: |   |
  Front | 3.50V- 19 Dunlop F11 |
  Rear | 130/90V- 18 Dunlop K127 |
Brakes: |   |
  Front | (2) 11.5-in. disc |
  Rear | single 11.5-in. disc |
Brake swept area | 240.9 sq. in. |
Brake loading (160-lb.rider) | 3.4 lb./sq. in. |
Wheelbase | 60.4 in. |
Rake/Trail | 29.5°/4.7 in. |
Handlebar width | 29.5 in. |
Seat height | 32.5 in. |
Seat width | 9.5 in. |
Footpeg height | 12.5 in. |
Ground clearance | 6 in. |
Test weight (w/half-tank fuel) | 662 1b. |
Weight bias, front / rear, percent | 47/53 |
GVWR | 1050 lb. |
Load capacity | 388 lb. |
|
|
PERFORMANCE |   |
Standing 1/4-mile | 12.13 sec. @ 109.89 mph |
Top speed in 1/2 -mile | 124 mph |
Fuel consumption | 41 mpg |
Range (to reserve tank) | 188 mi. |

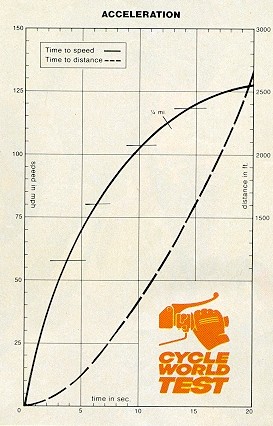

Acceleration: |   |
  0-30 mph | 1.9 sec. |
  0-40 mph | 2.7 sec. |
  0-50 mph | 3.6 sec. |
  0-60 mph | 4.6 sec. |
  0-70 mph | 5.5 sec. |
  0-80 mph | 6.6 sec. |
  0-90 mph | 7.8 sec. |
  0-100 mph | 9.6 sec. |
Top gear acceleration: |   |
  40-60 mph | 4.3 sec. |
  60-80 mph | 4.9 sec. |
Maximum speed in gears: |   |
  1st | 57 mph |
  2nd | 78 mph |
  3rd | 100 mph |
  4th | 116 mph |
  5th | 135 mph |
|
